VN Series R600a Variable Speed Compressor

The VN Series is Jiaxipera's flagship, most competitive super-high-efficiency inverter compressor product in the industry. Among them, the VNZ Series achieves a COP value exceeding 2.20 W/W (reaching 2.70 W/W under low-temperature conditions), making it the highest-efficiency inverter compressor capable of mass, stable production in the industry.

Product Advantages

The VN series compressor incorporates key technologies independently developed by the company, including a low-friction-loss lubrication system, flexible support for vibration and noise reduction, a high-efficiency large-flow valve system, an ultra-efficient motor adapted for low-temperature operating conditions, and intelligent inverter control. It features superior matching performance, an ultra-wide operating speed range, high acoustic quality, and high reliability. Highly recognized by domestic and international users in the ultra-energy-saving field, it is compatible with a wide range of European Class A refrigerators.

Technical Specifications

Compressor
Model		 Displ. Motor
Type		 Fre. Capacity COP Material of winding
ASHRAE CECOMAF ASHRAE CECOMAF
W BTU/h Kcal W W/W BTU/Wh W/W
(cm3) （Hz）
VNB1117Y 12.1 BLDC 40(1200rpm) 82 280 71 60 1.83 6.24 1.43 AL
53(1600rpm) 113 386 97 81 1.92 6.55 1.50
80(2400rpm) 167 570 144 124 1.90 6.48 1.48
100(3000rpm) 210 717 181 158 1.87 6.38 1.46
150(4500rpm) 300 1024 258 225 1.60 5.46 1.25
VNB1119Y 13.2 BLDC 40(1200rpm) 95 324 82 71 1.82 6.21 1.42 AL
53(1600rpm) 126 430 108 95 1.90 6.48 1.48
80(2400rpm) 190 648 163 143 1.88 6.41 1.47
100(3000rpm) 230 785 198 173 1.82 6.21 1.42
150(4500rpm) 316 1078 272 237 1.61 5.49 1.26
VND1119Y 13.2 BLDC 40(1200rpm) 95 324 82 71 1.82 6.21 1.42 AL
53(1600rpm) 126 430 108 95 1.95 6.65 1.52
80(2400rpm) 190 648 163 143 1.92 6.55 1.50
100(3000rpm) 230 785 198 173 1.83 6.24 1.43
150(4500rpm) 316 1078 272 237 1.60 5.46 1.25
VND1120Y 14.2 BLDC 40(1200rpm) 105 358 90 79 1.85 6.31 1.44 Cu
53(1600rpm) 132 450 113 99 1.95 6.65 1.52
80(2400rpm) 202 689 174 152 1.92 6.55 1.50
100(3000rpm) 246 839 212 185 1.80 6.14 1.40
150(4500rpm) 330 1126 284 248 1.55 5.29 1.21
VNN1116Y 11.3 BLDC 40(1200rpm) 80 273 69 60 1.92 6.55 1.50 AL
53(1600rpm) 108 369 93 81 2.02 6.89 1.58
80(2400rpm) 165 563 142 124 2.01 6.86 1.57
100(3000rpm) 205 699 176 154 1.94 6.62 1.51
150(4500rpm) 280 955 241 210 1.60 5.46 1.25
VNF1070Y 5.5 BLDC 40(1200rpm) 36 123 31 27 1.90 6.48 1.48 Cu
53(1600rpm) 50 171 43 38 2.00 6.82 1.56
80(2400rpm) 75 256 64 56 1.98 6.76 1.54
100(3000rpm) 90 307 77 68 1.88 6.41 1.47
150(4500rpm) 130 444 112 98 1.62 5.53 1.26
53(1600rpm)◎ 58 198 50 44 2.45 8.36 1.91
VNF1111Y 7.2 BLDC 31.7(950rpm) 45 154 39 34 1.82 6.21 1.42 CU
53(1600rpm) 75 256 64 56 2.10 7.17 1.64
67(2000rpm) 89 304 77 67 2.12 7.23 1.65
80(2400rpm) 108 369 93 81 2.10 7.17 1.64
100(3000rpm) 134 457 115 101 1.90 6.48 1.48
150(4500rpm) 180 614 155 135 1.68 5.73 1.31
53(1600rpm)◎ 78 266 67 59 2.53 8.63 1.97
VNF1111Y* 7.2 BLDC 31.7(950rpm) 45 154 39 34 1.82 6.21 1.42 AL
53(1600rpm) 75 256 64 56 2.09 7.13 1.63
80(2400rpm) 108 369 93 81 2.06 7.03 1.61
100(3000rpm) 134 457 115 101 1.88 6.41 1.47
150(4500rpm) 180 614 155 135 1.65 5.63 1.29
53(1600rpm)◎ 78 266 67 59 2.52 8.60 1.97
VNF1113Y 8.9 BLDC 31.7(950rpm) 50 171 43 38 1.82 6.21 1.42 CU
53(1600rpm) 85 290 73 64 2.10 7.17 1.64
67(2000rpm) 112 382 96 84 2.12 7.23 1.65
80(2400rpm) 132 450 113 99 2.10 7.17 1.64
100(3000rpm) 160 546 138 120 1.90 6.48 1.48
150(4500rpm) 225 768 193 169 1.68 5.73 1.31
53(1600rpm)◎ 95 324 82 71 2.55 8.70 1.99
VNF1113Y* 8.9 BLDC 31.7(950rpm) 50 171 43 38 1.82 6.21 1.42 AL
53(1600rpm) 85 290 73 64 2.09 7.13 1.63
80(2400rpm) 132 450 113 99 2.06 7.03 1.61
100(3000rpm) 160 546 138 120 1.88 6.41 1.47
150(4500rpm) 225 768 193 169 1.65 5.63 1.29
53(1600rpm)◎ 95 324 82 71 2.54 8.67 1.98
VNF1116Y 11.3 BLDC 40(1200rpm) 80 273 69 60 1.94 6.62 1.51 Cu
53(1600rpm) 108 369 93 81 2.04 6.96 1.59
80(2400rpm) 165 563 142 124 2.02 6.89 1.58
100(3000rpm) 205 699 176 154 1.88 6.41 1.47
150(4500rpm) 280 955 241 210 1.60 5.46 1.25
53(1600rpm)◎ 118 403 101 89 2.53 8.63 1.97
VNF1116Y* 11.3 BLDC 40(1200rpm) 80 273 69 60 1.94 6.62 1.51 AL
53(1600rpm) 108 369 93 81 2.05 6.99 1.60
80(2400rpm) 165 563 142 124 1.99 6.79 1.55
100(3000rpm) 205 699 176 154 1.88 6.41 1.47
150(4500rpm) 280 955 241 210 1.55 5.29 1.21
53(1600rpm)◎ 118 403 101 89 2.53 8.63 1.97
VNL1070Y 5.5 BLDC 40(1200rpm) 36 123 31 27 1.90 6.48 1.48 Cu
53(1600rpm) 50 171 43 38 2.02 6.89 1.58
80(2400rpm) 75 256 64 56 2.00 6.82 1.56
100(3000rpm) 90 307 77 68 1.92 6.55 1.50
150(4500rpm) 130 444 112 98 1.66 5.66 1.29
53(1600rpm)◎ 58 198 50 44 2.50 8.53 1.95
VNL1111Y 7.2 BLDC 31.7(950rpm) 45 154 39 34 1.83 6.24 1.43 Cu
53(1600rpm) 75 256 64 56 2.12 7.23 1.65
67(2000rpm) 89 304 77 67 2.14 7.30 1.67
80(2400rpm) 108 369 93 81 2.12 7.23 1.65
100(3000rpm) 134 457 115 101 1.92 6.55 1.50
150(4500rpm) 190 648 163 143 1.61 5.49 1.26
53(1600rpm)◎ 78 266 67 59 2.60 8.87 2.03
VNL1113Y 8.9 BLDC 31.7(950rpm) 50 171 43 38 1.83 6.24 1.43 Cu
53(1600rpm) 85 290 73 64 2.12 7.23 1.65
67(2000rpm) 112 382 96 84 2.14 7.30 1.67
80(2400rpm) 132 450 113 99 2.12 7.23 1.65
100(3000rpm) 160 546 138 120 1.92 6.55 1.50
150(4500rpm) 225 768 193 169 1.61 5.49 1.26
53(1600rpm)◎ 95 324 82 71 2.62 8.94 2.04
VNL1116Y* 11.3 BLDC 40(1200rpm) 80 273 69 60 1.97 6.72 1.54 Cu
53(1600rpm) 108 369 93 81 2.09 7.13 1.63
80(2400rpm) 165 563 142 124 2.05 6.99 1.60
100(3000rpm) 205 699 176 154 1.88 6.41 1.47
150(4500rpm) 280 955 241 210 1.60 5.46 1.25
53(1600rpm)◎ 95 324 82 71 2.54 8.67 1.98
VNZ1110Y 6.7 BLDC 31.7(950rpm) 40 136 34 30 1.76 6.01 1.37 Cu
53(1600rpm) 60 205 52 45 2.04 6.96 1.59
67(2000rpm) 78 266 67 59 2.08 7.10 1.62
80(2400rpm) 90 307 77 68 2.05 6.99 1.60
100(3000rpm) 110 375 95 83 1.92 6.55 1.50
150(4500rpm) 160 546 138 143 1.61 5.49 1.26
53(1600rpm)◎ 70 239 60 53 2.62 8.94 2.04
VNZ1111Y 7.2 BLDC 31.7(950rpm) 45 154 39 34 1.82 6.21 1.42 Cu
53(1600rpm) 75 256 64 56 2.12 7.23 1.65
67(2000rpm) 89 304 77 67 2.16 7.37 1.68
80(2400rpm) 108 369 93 81 2.12 7.23 1.65
100(3000rpm) 134 457 115 101 1.92 6.55 1.50
150(4500rpm) 190 648 163 143 1.61 5.49 1.26
53(1600rpm)◎ 78 266 67 59 2.65 9.04 2.07
VNZ1113Y 8.9 BLDC 31.7(950rpm) 50 171 43 38 1.83 6.24 1.43 Cu
53(1600rpm) 85 290 73 64 2.13 7.27 1.66
67(2000rpm) 112 382 96 84 2.16 7.37 1.68
80(2400rpm) 132 450 113 99 2.14 7.30 1.67
100(3000rpm) 160 546 138 120 1.93 6.59 1.51
150(4500rpm) 225 768 193 169 1.62 5.53 1.26
53(1600rpm)◎ 95 324 82 71 2.67 9.11 2.08
VNZ1116Y* 11.3 BLDC 40(1200rpm) 80 273 69 60 1.98 6.76 1.54 Cu
53(1600rpm) 108 369 93 81 2.12 7.23 1.65
80(2400rpm) 165 563 142 124 2.06 7.03 1.61
100(3000rpm) 205 699 176 154 1.90 6.48 1.48
150(4500rpm) 280 955 241 210 1.60 5.46 1.25
53(1600rpm)◎ 95 324 82 71 2.62 8.94 2.04
VNW1113Y* 8.9 BLDC 31.7(950rpm) 50 171 43 38 1.90 6.48 1.48 Cu
53(1600rpm) 85 290 73 64 2.15 7.34 1.68
67(2000rpm) 112 382 96 84 2.20 7.51 1.72
80(2400rpm) 132 450 113 99 2.17 7.40 1.69
100(3000rpm) 160 546 138 120 1.95 6.65 1.52
150(4500rpm) 225 768 193 169 1.65 5.63 1.29
53(1600rpm)◎ 95 324 82 71 2.75 9.38 2.15



Notes:

(1) All data is subject to change without notice.

(2) *: Currently in development.

(3)◎: Test conditions -23.3/38℃.

Test conditions: ASHRAE(℃) ◎(℃)
Evaporaring temp. -23.3 -23.3
Condensing temp. 54.4 38
Subcooling temp. 32.2 32.2
Suction temp. 32.2 32.2
Ambient temp. 32.2 32.2

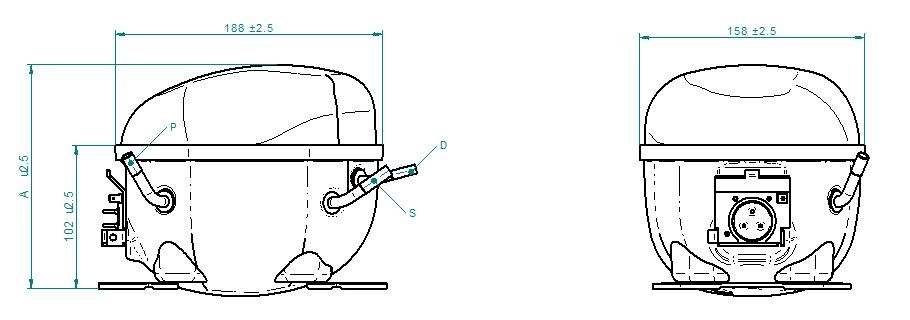

Compressor Dimension

VN Series R600a-
