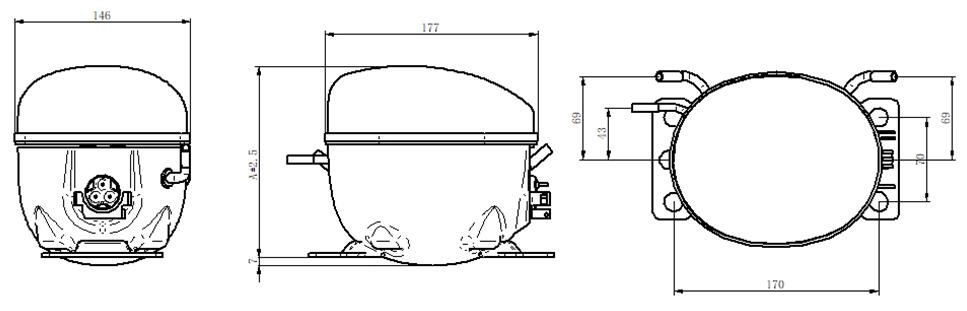

T Series R600a Single Speed Compressor

The T series hermetic compressor is the company's best-selling product. It features high efficiency, a wide cooling capacity range, a compact structure, and stable and reliable operation. With broad application scenarios, it is compatible with various refrigeration appliances such as household refrigerators, freezers, and ice makers, meeting everyday low-temperature refrigeration needs at home.

Product Advantages

Wide Cooling Capacity Range

With a cooling capacity ranging from 52W to 220W, the compressor is compatible with most refrigerator models on the market.

Strong Power Grid Adaptability

The compressor can start and operate normally within a voltage range of 160V to 254V (for 220V voltage markets), offering strong resistance to grid fluctuations.

Durable and Reliable

Precision-engineered for wear resistance and long service life, the compressor delivers stable continuous operation over extended periods with a low failure rate.

Technical Specifications

Compressor
Model		 Displ. Motor
Type		 Vol./Fre. Cooling Capacity COP Material of winding
Main/Aux.		 Running Capacitor
(µF)
ASHRAE CECOMAF ASHRAE CECOMAF
W BTU/h Kcal W W/W BTU/Wh W/W
(cm3) (V~/Hz)
T1110Y 6.7 RSIR 220~240/50 115 392 99 86 1.40 4.78 1.09 Al/Al -
T1111Y 7.2 RSIR 220~240/50 126 430 108 95 1.40 4.78 1.09 Al/Al -
T1112Y 8.1 RSIR 220~240/50 140 478 120 105 1.40 4.78 1.09 Al/Al -
T1113Y 8.9 RSIR 220~240/50 152 519 131 114 1.40 4.78 1.09 Al/Al -
T1114Y 9.5 RSIR 220~240/50 168 573 144 126 1.40 4.78 1.09 Al/Al -
T1116Y 10.5 RSIR 220~240/50 184 628 158 138 1.40 4.78 1.09 Al/Al -
T1117Y* 11.3 RSIR 220~240/50 196 669 169 147 1.40 4.78 1.09 Al/Al -
TT1110GY 6.7 RSIR 220~240/50 115 392 99 86 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 3.0
TT1111GY 7.2 RSIR 220~240/50 126 392 108 95 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 3.0
TT1112GY 8.1 RSIR 220~240/50 140 478 120 105 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 4.0
TT1113GY 8.9 RSIR 220~240/50 152 519 131 114 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 4.0
TT1114GY 9.5 RSIR 220~240/50 168 573 144 126 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 4.0
TT1116GY 10.5 RSIR 220~240/50 184 628 158 138 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 4.0
TT1117GY* 11.3 RSIR 220~240/50 196 669 169 147 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 4.0
TT1119Y 12.1 RSIR 220~240/50 212 723 182 159 1.55 5.29 1.21 Al/Al -
TG1080Y 5.5 RSCR 220~240/50 92 314 79 69 1.68 5.73 1.31 Al/Al 3.0
TG1090Y 6.0 RSCR 220~240/50 102 348 88 77 1.68 5.73 1.31 Al/Al 3.0
TG1110Y 6.7 RSCR 220~240/50 115 392 99 86 1.68 5.73 1.31 Al/Al 3.0
TG1111Y 7.2 RSCR 220~240/50 126 430 108 95 1.68 5.73 1.31 Al/Al 3.0
TG1112Y 8.1 RSCR 220~240/50 140 478 120 105 1.68 5.73 1.31 Al/Al 4.0
TG1113Y 8.9 RSCR 220~240/50 152 519 131 114 1.68 5.73 1.31 Al/Al 4.0
TG1114Y 9.5 RSCR 220~240/51 168 573 144 126 1.68 5.73 1.31 Al/Al 4.0
TG1116Y 10.5 RSCR 220~240/51 184 628 158 138 1.68 5.73 1.31 Al/Al 4.0
TG1117Y* 11.3 RSCR 220~240/50 196 669 169 147 1.68 5.73 1.31 Al/Al 4.0
TG1119Y* 12.1 RSCR 220~240/50 212 723 182 159 1.68 5.73 1.31 Al/Al 4.0
TH1090Y 6.0 RSCR 220~240/50 102 348 88 77 1.75 5.97 1.37 Al/Al 3.0
TH1110Y 6.7 RSCR 220~240/50 115 392 99 86 1.75 5.97 1.37 Al/Al 3.0
TH1111Y 7.2 RSCR 220~240/50 126 430 108 95 1.75 5.97 1.37 Al/Al 3.0
TH1112Y 8.1 RSCR 220~240/50 140 478 120 105 1.75 5.97 1.37 Al/Al 3.0
TH1113Y 8.9 RSCR 220~240/50 152 519 131 114 1.75 5.97 1.37 Al/Al 4.0
TH1114Y 9.5 RSCR 220~240/50 168 573 144 126 1.75 5.97 1.37 Al/Al 4.0
TH1116Y* 10.5 RSCR 220~240/50 184 628 158 138 1.75 5.97 1.37 Al/Al 4.0
TX1050Y 3.3 RSCR(低功耗) 220~240/50 52 177 45 39 1.78 6.07 1.39 Al/AL 2.0
TX1060Y* 4.1 RSCR(低功耗) 220~240/50 70 239 60 53 1.78 6.07 1.39 Al/AL 2.0
TX1070Y 4.9 RSCR(低功耗) 220~240/50 82 280 71 62 1.78 6.07 1.39 Al/AL 2.0
TX1080Y 5.5 RSCR(低功耗) 220~240/50 92 314 79 69 1.80 6.14 1.40 Al/AL 2.0
TX1090Y 6.0 RSCR 220~240/50 102 348 88 77 1.80 6.14 1.40 Al/AL 2.0
TX1110Y 6.7 RSCR 220~240/50 115 392 99 86 1.80 6.14 1.40 Al/AL 2.5
TX1111Y 7.2 RSCR 220~240/50 126 430 108 95 1.80 6.14 1.40 Al/AL 2.5
TX1112Y 8.1 RSCR 220~240/50 140 478 120 105 1.80 6.14 1.40 Al/AL 3.0
TX1113Y 8.9 RSCR 220~240/50 152 529 133 116 1.80 6.14 1.40 Al/AL 3.0
TX1114Y 9.6 RSCR 220~240/50 168 573 144 126 1.80 6.14 1.40 Al/AL 3.5
TX1116Y 10.5 RSCR 220~240/50 184 529 133 116 1.80 6.14 1.40 Al/AL 4.0
TX1117Y 11.3 RSCR 220~240/50 196 669 169 147 1.80 6.14 1.40 Al/AL 4.0
TX1119Y 12.1 RSCR(低功耗) 220~240/50 212 723 182 159 1.80 6.14 1.40 Al/Cu 4.0
TB1050Y* 3.3 RSCR(ePTC) 220~240/50 52 177 45 39 1.83 6.24 1.43 Al/AL 2.0
TB1060Y* 4.1 RSCR(ePTC) 220~240/50 70 239 60 53 1.83 6.24 1.43 Al/AL 2.0
TB1070Y 4.9 RSCR(ePTC) 220~240/50 82 280 71 62 1.83 6.24 1.43 Al/AL 2.0
TB1080Y 5.5 RSCR(ePTC) 220~240/50 92 314 79 69 1.85 6.31 1.44 Al/AL 2.0
TB1090Y 6.0 RSCR(ePTC) 220~240/50 102 348 88 77 1.85 6.31 1.44 Al/AL 2.0
TB1110Y 6.7 RSCR(ePTC) 220~240/50 115 392 99 86 1.85 6.31 1.44 Al/AL 2.5
TB1111Y 7.2 RSCR(ePTC) 220~240/50 126 430 108 95 1.85 6.31 1.44 Al/AL 2.5
TB1112Y 8.1 RSCR(ePTC) 220~240/50 140 478 120 105 1.85 6.31 1.44 Al/AL 3.0
TB1113Y 8.9 RSCR(ePTC) 220~240/50 152 529 133 116 1.85 6.31 1.44 Al/AL 3.0
TB1114Y 9.6 RSCR(ePTC) 220~240/50 168 573 144 126 1.85 6.31 1.44 Al/AL 3.5
TB1116Y 10.5 RSCR(ePTC) 220~240/50 184 529 133 116 1.85 6.31 1.44 Al/AL 4.0
TB1117Y 11.3 RSCR(ePTC) 220~240/50 196 669 169 147 1.85 6.31 1.44 Al/AL 4.0
TE1070Y 4.9 RSCR(ePTC) 220~240/50 82 280 71 62 1.90 6.48 1.48 Al/Al 2.0
TE1080Y 5.5 RSCR(ePTC) 220~240/50 92 314 79 69 1.90 6.48 1.48 Al/Al 2.0
TE1090Y 6.0 RSCR(ePTC) 220~240/50 102 348 88 77 1.90 6.48 1.48 Al/Al 2.5
TE1110Y 6.7 RSCR(ePTC) 220~240/50 115 392 99 86 1.90 6.48 1.48 Al/Al 3.0
TE1111Y 7.2 RSCR(ePTC) 220~240/50 126 430 108 95 1.90 6.48 1.48 Al/Al 3.0
TE1112Y 8.1 RSCR(ePTC) 220~240/50 140 478 120 105 1.90 6.48 1.48 Al/Al 3.0
TE1113Y 8.9 RSCR(ePTC) 220~240/50 152 529 133 116 1.90 6.48 1.48 Al/Al 3.0
TE1114Y 9.6 RSCR(ePTC) 220~240/50 168 573 144 126 1.90 6.48 1.48 Al/Al 4.0
T1111Y 7.2 RSIR 160~240/50 126 430 108 95 1.4 4.78 1.09 Al/Al -
T1112Y 8.1 RSIR 160~240/50 140 478 120 105 1.4 4.78 1.09 Al/Al -
T1113Y 8.9 RSIR 160~240/50 152 519 131 114 1.4 4.78 1.09 Al/Al -
T1114Y 9.5 RSIR 160~240/50 168 573 144 126 1.4 4.78 1.09 Al/Al -
TT1110GY 6.7 RSIR 160~240/50 115 392 99 86 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 3.0
TT1111GY 7.2 RSIR 160~240/50 126 430 108 95 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 3.0
TT1112GY 8.1 RSIR 160~240/50 140 478 120 105 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 4.0
TT1113GY 8.9 RSIR 160~240/50 152 519 131 114 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 4.0
TT1114GY 9.5 RSIR 160~240/50 168 573 144 126 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 4.0
TT1113Y 8.9 RSCR 135~240/50 152 519 131 114 1.55 5.29 1.21 Al/Al 6.0
TT1114Y* 9.6 RSCR 135~240/50 168 573 144 126 1.55 5.29 1.21 Al/Al -
TT1116GY 10.5 RSIR 160~240/50 184.0 627.8 158.2 138.0 1.52 5.19 1.19 Al/Al -
RSCR 1.60 5.46 1.25 4.0
TG1080Y 5.5 RSCR 160~240/50 92 314 79 69 1.66 5.66 1.29 Al/Al 3.0
TG1090Y 6.0 RSCR 160~240/50 102 348 88 77 1.66 5.66 1.29 Al/Al 3.0
TG1110Y 6.7 RSCR 160~240/50 115 392 99 86 1.66 5.66 1.29 Al/Al 3.0
TG1111Y 7.2 RSCR 160~240/50 126 430 108 95 1.66 5.66 1.29 Al/Al 4.0
TG1112Y 8.1 RSCR 160~240/50 140 478 120 105 1.66 5.66 1.29 Al/Al 4.0
TG1113Y 8.9 RSCR 160~240/50 152 519 131 114 1.66 5.66 1.29 Al/Al 4.0
TG1114Y 9.5 RSCR 160~240/50 168 573 144 126 1.66 5.66 1.29 Al/Al 4.0
TX1070Y* 5.0 RSCR 160~240/50 82 280 71 62 1.78 6.07 1.39 Al/Al 2.0
TX1080Y 5.5 RSCR 160~240/50 92 314 79 69 1.78 6.07 1.39 Al/Al 2.0
TX1090Y 6.0 RSCR 160~240/50 102 348 88 77 1.78 6.07 1.39 Al/Al 2.5
TX1110Y 6.7 RSCR 160~240/50 115 392 99 86 1.78 6.07 1.39 Al/Al 2.5
TX1111Y 7.2 RSCR 160~240/50 126 430 108 95 1.78 6.07 1.39 Al/Al 3.0
TX1112Y 8.1 RSCR 160~240/50 140 478 120 105 1.78 6.07 1.39 Al/Al 3.0
TX1113Y 8.9 RSCR 160~240/50 152 519 131 114 1.78 6.07 1.39 Al/Al 4.0
TX1114Y 9.6 RSCR 160~240/50 168 573 144 126 1.78 6.07 1.39 Al/Al 4.0
TX1116Y 10.5 RSCR 160~240/50 184 628 158 138 1.78 6.07 1.39 Al/Al 4.0
TB1070Y* 5.0 RSCR(ePTC) 160~240/50 82 280 71 62 1.83 6.24 1.43 Al/Al 2.0
TB1080Y* 5.5 RSCR(ePTC) 160~240/50 92 314 79 69 1.83 6.24 1.43 Al/Al 2.0
TB1090Y 6.0 RSCR(ePTC) 160~240/50 102 348 88 77 1.83 6.24 1.43 Al/Al 2.5
TB1110Y 6.7 RSCR(ePTC) 160~240/50 115 392 99 86 1.83 6.24 1.43 Al/Al 2.5
TB1111Y 7.2 RSCR(ePTC) 160~240/50 126 430 108 95 1.83 6.24 1.43 Al/Al 3.0
TB1112Y 8.1 RSCR(ePTC) 160~240/50 140 478 120 105 1.83 6.24 1.43 Al/Al 3.0
TB1113Y* 8.9 RSCR(ePTC) 160~240/50 152 519 131 114 1.83 6.24 1.43 Al/Al 4.0
TB1114Y 9.6 RSCR(ePTC) 160~240/50 168 573 144 126 1.83 6.24 1.43 Al/Al 4.0
TB1116Y 10.5 RSCR(ePTC) 160~240/50 184 628 158 138 1.83 6.24 1.43 Al/Al 4.0
TE1090Y* 6.0 RSCR(ePTC) 160~240/50 102 348 88 77 1.88 6.41 1.47 Al/Al 3.0
TE1110Y* 6.7 RSCR(ePTC) 160~240/50 115 392 99 86 1.88 6.41 1.47 Al/Al 3.0
TE1111Y 7.2 RSCR(ePTC) 160~240/50 126 430 108 95 1.88 6.41 1.47 Al/Al 4.0
TE1112Y* 8.1 RSCR(ePTC) 160~240/50 140 478 120 105 1.88 6.41 1.47 Al/Al 4.0
T1090DY 5.5 RSIR 220~/60 106 362 91 80 1.45 4.95 1.13 Al/Al -
T1114DY 8.1 RSIR 220~/60 164 560 141 123 1.45 4.95 1.13 Al/Al -
T1116DY 8.9 RSIR 220~/60 184 628 158 138 1.45 4.95 1.13 Al/Al -
TT1090DY* 5.5 RSIR 220~/60 106 362 91 80 1.55 5.29 1.21 Al/Al -
TT1110DY* 6.0 RSIR 220~/60 123 420 106 92 1.55 5.29 1.21 Al/Al -
TT1112DY* 6.7 RSIR 220~/60 135 461 116 101 1.55 5.29 1.21 Al/Al -
TT1114DY 8.1 RSIR 220~/60 164 560 141 123 1.55 5.29 1.21 Al/Al -
TG1090DY 5.5 RSCR 220~/60 106 362 91 80 1.65 5.63 1.29 Al/Al -
TG1110DY 6.0 RSCR 220~/60 123 420 106 92 1.65 5.63 1.29 Al/Al -
TG1112DY 6.7 RSCR 220~/60 135 461 116 101 1.65 5.63 1.29 Al/Al -
TG1114DY 8.1 RSCR 220~/60 164 560 141 123 1.65 5.63 1.29 Al/Al -
TG1116DY* 8.9 RSCR 220~/60 184 628 158 138 1.65 5.63 1.29 Al/Al -
TG1117DY 9.6 RSCR 220~/60 196 669 169 147 1.65 5.63 1.29 Al/Al -
TB1116DY 8.9 RSCR(ePTC) 220~/60 184 628 158 138 1.85 6.31 1.44 Al/Al 4
TB1117DY 9.6 RSCR(ePTC) 220~/60 196 669 169 147 1.85 6.31 1.44 Al/Al 4
TX1119DY* 10.5 RSCR(ePTC) 220~/60 212 723 182 159 1.80 6.14 1.40 Al/Al 4
TE1116DY* 8.9 RSCR(ePTC) 220~/60 184 628 158 138 1.90 6.48 1.48 Al/Cu 4
TE1117DY* 9.6 RSCR(ePTC) 220~/60 196 669 169 147 1.90 6.48 1.48 Al/Cu 4
TG1070KY* 5.0 RSCR 220~/50 82 280 71 62 1.65 5.63 1.29 Al/Al 3
220~/60 94 321 81 71 1.68 5.73 1.31
TG1080KY 5.5 RSCR 220~/50 92 314 79 69 1.65 5.63 1.29 Al/Al 3
220~/60 106 362 91 80 1.68 5.73 1.31
TG1090KY 6.0 RSCR 220~/50 102 348 88 77 1.65 5.63 1.29 Al/Al 3
220~/60 123 420 106 92 1.68 5.73 1.31
TG1110KY 6.7 RSCR 220~/50 115 392 99 86 1.65 5.63 1.29 Al/Al 3
220~/60 135 461 116 101 1.68 5.73 1.31
TG1111KY* 7.2 RSCR 220~/50 126 430 108 95 1.65 5.63 1.29 Al/Al 3
220~/60 148 505 127 111 1.68 5.73 1.31
TG1112KY 8.1 RSCR 220~/50 140 478 120 105 1.65 5.63 1.29 Al/Al 4
220~/60 164 560 141 123 1.68 5.73 1.31
TG1113KY 8.9 RSCR 220~/50 152 519 131 114 1.65 5.63 1.29 Al/Al 4
220~/60 180 614 155 135 1.68 5.73 1.31
TG1114KY 9.6 RSCR 220~/50 168 573 144 126 1.65 5.63 1.29 Al/Al 4
220~/60 196 669 169 147 1.68 5.73 1.31
TH1080KY 5.5 RSCR 220~/50 92 314 79 69 1.72 5.87 1.34 Al/Al 3
220~/60 106 362 91 80 1.75 5.97 1.37
TX1111KY 7.2 RSCR 220~/50 126 430 108 95 1.77 6.04 1.38 Al/Al 4
220~/60 148 505 127 111 1.80 6.14 1.40
TX1112KY 8.1 RSCR 220~/50 140 478 120 105 1.77 6.04 1.38 Al/Al 4
220~/60 164 560 141 123 1.80 6.14 1.40
TX1113KY 8.9 RSCR 220~/50 152 519 131 114 1.77 6.04 1.38 Al/Cu 4
220~/60 180 614 155 135 1.80 6.14 1.40
TT1112FY 8.1 RSIR 100~/50 140 478 120 105 1.52 5.19 1.19 Al/Al -
100~/60 162 553 139 122 1.55 5.29 1.21
TT1114FY 8.9 RSIR 100~/50 162 553 139 122 1.52 5.19 1.19 Al/Al -
100~/60 196 669 169 147 1.55 5.29 1.21
TG1090FY 6.0 RSCR 100~/50 102 348 88 77 1.65 5.63 1.29 Al/Al 10
100~/60 116 396 100 87 1.68 5.73 1.31
TG1110FY 6.7 RSCR 100~/50 115 392 99 86 1.65 5.63 1.29 Al/Al 8
100~/60 131 447 113 98 1.68 5.73 1.31
TG1112FY* 8.1 RSCR 100~/50 140 478 120 105 1.65 5.63 1.29 Al/Al 8
100~/60 162 553 139 122 1.68 5.73 1.31
TH1090FY 6.0 RSCR 100~/50 102 348 88 77 1.72 5.87 1.34 Al/Al 8
100~/60 116 396 100 87 1.73 5.90 1.35
TH1110FY* 6.7 RSCR 100~/50 115 392 99 86 1.72 5.87 1.34 Al/Al 8
100~/60 131 447 113 98 1.73 5.90 1.35
TH1111FY 7.2 RSCR 100~/50 126 430 108 95 1.72 5.87 1.34 Al/Al 10
100~/60 145 495 125 109 1.73 5.90 1.35
TX1113FY 8.9 RSCR 100~/50 152 519 131 114 1.77 6.04 1.38 Al/Cu 10
100~/60 175 597 150 131 1.78 6.07 1.39
TB1090FY 6.0 RSCR 100~/50 102 348 88 77 1.80 6.14 1.40 Al/Al 10
100~/60 116 396 100 87 1.82 6.21 1.42
TB1110FY 6.7 RSCR 100~/50 115 392 99 86 1.80 6.14 1.40 Al/Al 10
100~/60 131 447 113 98 1.82 6.21 1.42
TE1111FY 7.2 RSCR 100~/50 126 430 108 95 1.85 6.31 1.44 Cu/Cu 10
100~/60 145 495 125 109 1.88 6.41 1.47





Compressor
Model		 Displ. Motor
Type		 Vol./Fre. Cooling Capacity COP Material of winding
Main/Aux.		 Running Capacitor
(µF)
ASHRAE AHAM ASHRAE AHAM
W BTU/h W BTU/h COP EER COP EER
(cm3) (V~/Hz)
T1110HY 5.5 RSIR 115~/60 110 375 121 413 1.45 4.95 1.70 5.79 Al/Al -
T1111HY* 6.0 RSIR 115~/60 123 420 135 462 1.45 4.95 1.70 5.79 Al/Al -
T1112HY* 6.7 RSIR 115~/60 135 461 149 507 1.45 4.95 1.70 5.79 Al/Al -
T1114HY 8.1 RSIR 115~/60 164 560 180 616 1.45 4.95 1.70 5.79 Al/Al -
T1116HY 8.9 RSIR 115~/60 182 621 200 683 1.45 4.95 1.70 5.79 Al/Al -
T1117HY* 9.6 RSIR 115~/60 196 669 216 736 1.45 4.95 1.70 5.79 Al/Al -
TT1110HY 5.5 RSIR 115~/60 110 375 121 413 1.55 5.29 1.81 6.19 Al/Al -
TT1111HY 6.0 RSIR 115~/60 123 420 135 462 1.55 5.29 1.81 6.19 Al/Al -
TT1112HY 6.7 RSIR 115~/60 135 461 149 507 1.55 5.29 1.81 6.19 Al/Al -
TT1114HY 8.1 RSIR 115~/60 164 560 180 616 1.55 5.29 1.81 6.19 Al/Al -
TT1116HY 8.9 RSIR 115~/60 182 621 200 683 1.55 5.29 1.81 6.19 Al/Al -
TT1117HY 9.6 RSIR 115~/60 196 669 216 736 1.55 5.29 1.81 6.19 Al/Al -
TT1119HY* 10.5 RSIR 115~/60 212 723 233 796 1.55 5.29 1.81 6.19 Al/Al -
TG1080HY 4.9 RSCR 115~/60 92 314 101 345 1.65 5.63 1.93 6.59 Al/Al -
TG1110HY 5.5 RSCR 115~/60 110 375 121 413 1.65 5.63 1.93 6.59 Al/Al -
TG1111HY 6.0 RSCR 115~/60 123 420 135 462 1.65 5.63 1.93 6.59 Al/Al -
TG1112HY 6.7 RSCR 115~/60 135 461 149 507 1.65 5.63 1.93 6.59 Al/Al -
TG1114HY 8.1 RSCR 115~/60 164 560 180 616 1.65 5.63 1.93 6.59 Al/Al -
TG1116HY 8.9 RSCR 115~/60 182 621 200 683 1.65 5.63 1.93 6.59 Al/Al -
TG1117HY 9.6 RSCR 115~/60 196 669 216 736 1.65 5.63 1.93 6.59 Al/Al -
TH1110HY 5.5 RSCR 115~/60 110 375 121 439 1.75 5.97 2.05 6.99 Al/Al 10
TH1111HY* 6.0 RSCR 115~/60 123 420 135 491 1.75 5.97 2.05 6.99 Al/Al 10
TH1112HY 6.7 RSCR 115~/60 135 461 149 539 1.75 5.97 2.05 6.99 Al/Al 10
TH1114HY* 8.1 RSCR 115~/60 164 560 180 655 1.75 5.97 2.05 6.99 Al/Al 10
TH1116HY 8.9 RSCR 115~/60 182 621 200 727 1.75 5.97 2.05 6.99 Al/Al 12
TX1080HY 5.0 RSCR 115~/60 95 324 105 357 1.80 6.14 2.11 7.19 Al/Al 8
TX1110HY 5.5 RSCR 115~/60 110 375 121 413 1.80 6.14 2.11 7.19 Al/Al 6
TX1111HY 6.0 RSCR 115~/60 123 420 135 462 1.80 6.14 2.11 7.19 Al/Al 10
TX1112HY 6.7 RSCR 115~/60 135 461 149 507 1.80 6.14 2.11 7.19 Al/Al 10
TX1114HY 8.1 RSCR 115~/60 164 560 180 616 1.80 6.14 2.11 7.19 Al/Al 10
TX1116HY* 8.9 RSCR 115~/60 182 621 200 683 1.80 6.14 2.11 7.19 Al/Al 10
TX1117HY* 9.6 RSCR 115~/60 196 669 216 736 1.80 6.14 2.11 7.19 Al/Al 10
TX1119HY* 10.5 RSCR 115~/60 212 723 233 796 1.80 6.14 2.11 7.19 Al/Al 10
TB1080HY 5.0 RSCR(ePTC) 115~/60 95 324 105 357 1.85 6.31 2.16 7.39 Al/Al 8
TB1110HY 5.5 RSCR(ePTC) 115~/60 110 375 121 413 1.85 6.31 2.16 7.39 Al/Al 6
TB1111HY 6.0 RSCR(ePTC) 115~/60 123 420 135 462 1.85 6.31 2.16 7.39 Al/Al 10
TB1112HY 6.7 RSCR(ePTC) 115~/60 135 461 149 507 1.85 6.31 2.16 7.39 Al/Al 10
TB1114HY 8.1 RSCR(ePTC) 115~/60 164 560 180 616 1.85 6.31 2.16 7.39 Al/Al 10
TB1116HY* 8.9 RSCR(ePTC) 115~/60 182 621 200 683 1.85 6.31 2.16 7.39 Al/Al 10
TB1117HY* 9.6 RSCR(ePTC) 115~/60 196 669 216 736 1.85 6.31 2.16 7.39 Al/Al 10
TE1080HY* 5.0 RSCR(ePTC) 115~/60 95 324 105 357 1.90 6.48 2.22 7.59 Al/Al 8
TE1110HY* 5.5 RSCR(ePTC) 115~/60 110 375 121 413 1.90 6.48 2.22 7.59 Al/Al 8
TE1111HY* 6.0 RSCR(ePTC) 115~/60 123 420 135 462 1.90 6.48 2.22 7.59 Al/Al 10
TE1112HY 6.7 RSCR(ePTC) 115~/60 135 461 149 507 1.90 6.48 2.22 7.59 Al/Al 10
TE1113HY* 7.2 RSCR(ePTC) 115~/60 148 505 163 555 1.90 6.48 2.22 7.59 Al/Al 10
TE1114HY* 8.1 RSCR(ePTC) 115~/60 164 560 180 616 1.90 6.48 2.22 7.59 Al/Al 10
TE1116HY* 8.9 RSCR(ePTC) 115~/60 182 621 200 683 1.90 6.48 2.22 7.59 Al/Cu 10
TE1117HY* 9.6 RSCR(ePTC) 115~/60 196 669 216 736 1.90 6.48 2.22 7.59 Al/Cu 10



Notes:

(1) All data is subject to change without notice.

Test conditions: ASHRAE CECOMAF AHAM
Evaporaring temp. (℃) -23.3 -25 -23.3
Condensing temp. (℃) 54.4 55 40.5
Subcooling temp. (℃) 32.2 55 32.2
Suction temp. (℃) 32.2 32.2 32.2
Ambient temp. (℃) 32.2 32.2 32.2



Compressor Dimension

T Series R600a-

Get in Touch

主站蜘蛛池模板： 中西区| 宁晋县| 抚远县| 定西市| 香格里拉县| 武功县| 全州县| 错那县| 来宾市| 阿坝| 体育| 泾源县| 通海县| 青州市| 洛扎县| 梧州市| 五大连池市| 泉州市| 新干县| 成安县| 榆中县| 濮阳市| 沙田区| 朝阳县| 湖南省| 双鸭山市| 东辽县| 丹东市| 辰溪县| 福鼎市| 永善县| 中江县| 宝应县| 沙河市| 兰坪| 上饶市| 咸宁市| 饶阳县| 泉州市| 和龙市| 皋兰县|
