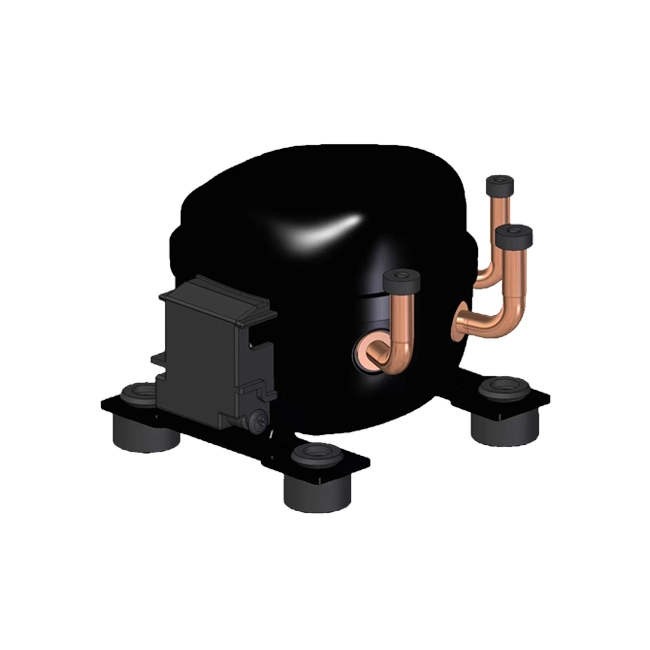

The EVX series is a newly developed, factory-fitted, vehicle-mounted DC variable-speed compressor from Jiaxipera. As the core refrigeration component of vehicle-mounted built-in refrigerators, it is compatible with the voltage platforms of all new energy vehicle models and can be seamlessly integrated into vehicle spaces such as armrest compartments, under-seat areas and boot compartments.
Utilising high-efficiency variable-speed technology, it delivers faster cooling, superior temperature control and lower energy consumption, thereby effectively reducing the impact on the vehicle’s overall range. Featuring flexible mounting and a new anti-collision design, it withstands complex in-vehicle conditions such as rough terrain and extreme temperatures. Having passed rigorous in-vehicle vibration, wide-temperature and waterproof reliability tests, it operates with low noise and minimal vibration, perfectly meeting the vehicle’s NVH standards.
| CompressorModel | Displ. | Motor Type | Voltage RPM | Capacity | COP | |||
| (cm3) | ASHRAE | ASHRAE | ||||||
| W | BTU/h | Kcal | W/W | BTU/Wh | ||||
| EVX 1035Z* | 1.4 | BLDC | 12/24-2700 | 34 | 116 | 29 | 1.35 | 4.61 |
| 12/24-4000 | 49 | 167 | 42 | 1.30 | 4.44 | |||
| EVX 1035Z* | 1.6 | BLDC | 12/24-2700 | 38 | 130 | 33 | 1.35 | 4.61 |
| 12/24-4000 | 56 | 191 | 48 | 1.30 | 4.44 | |||
